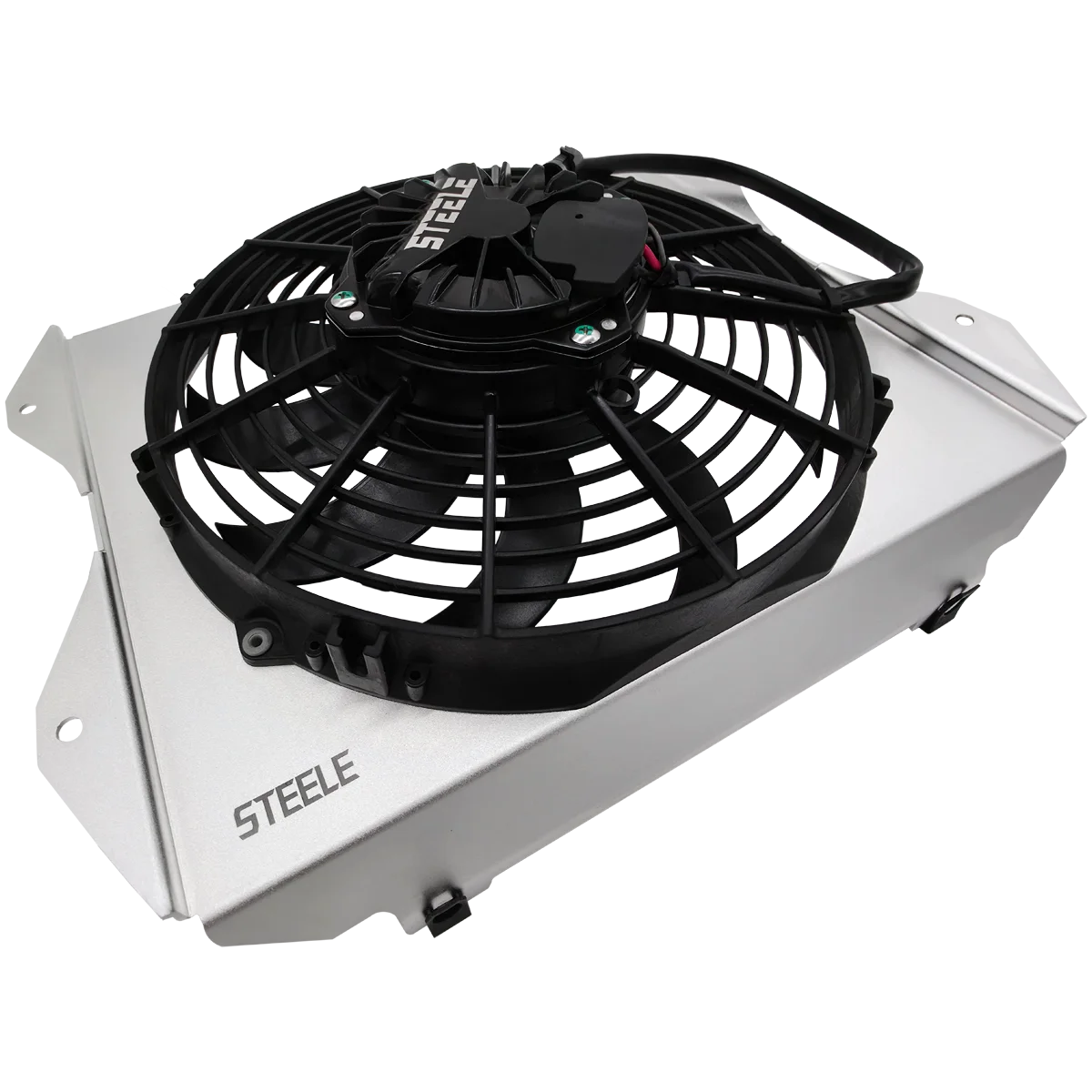

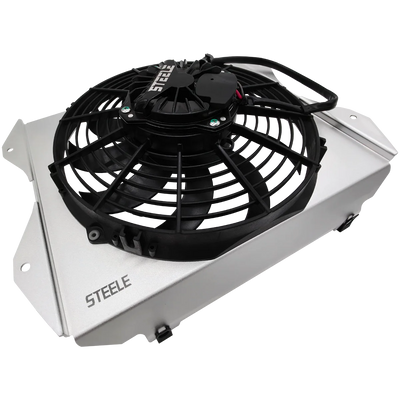

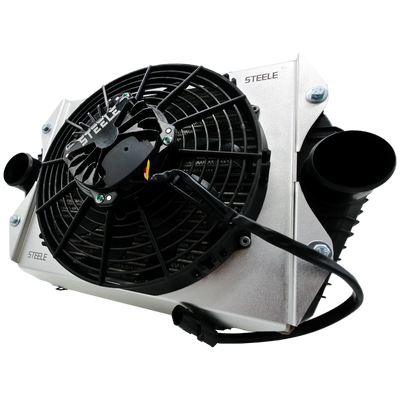

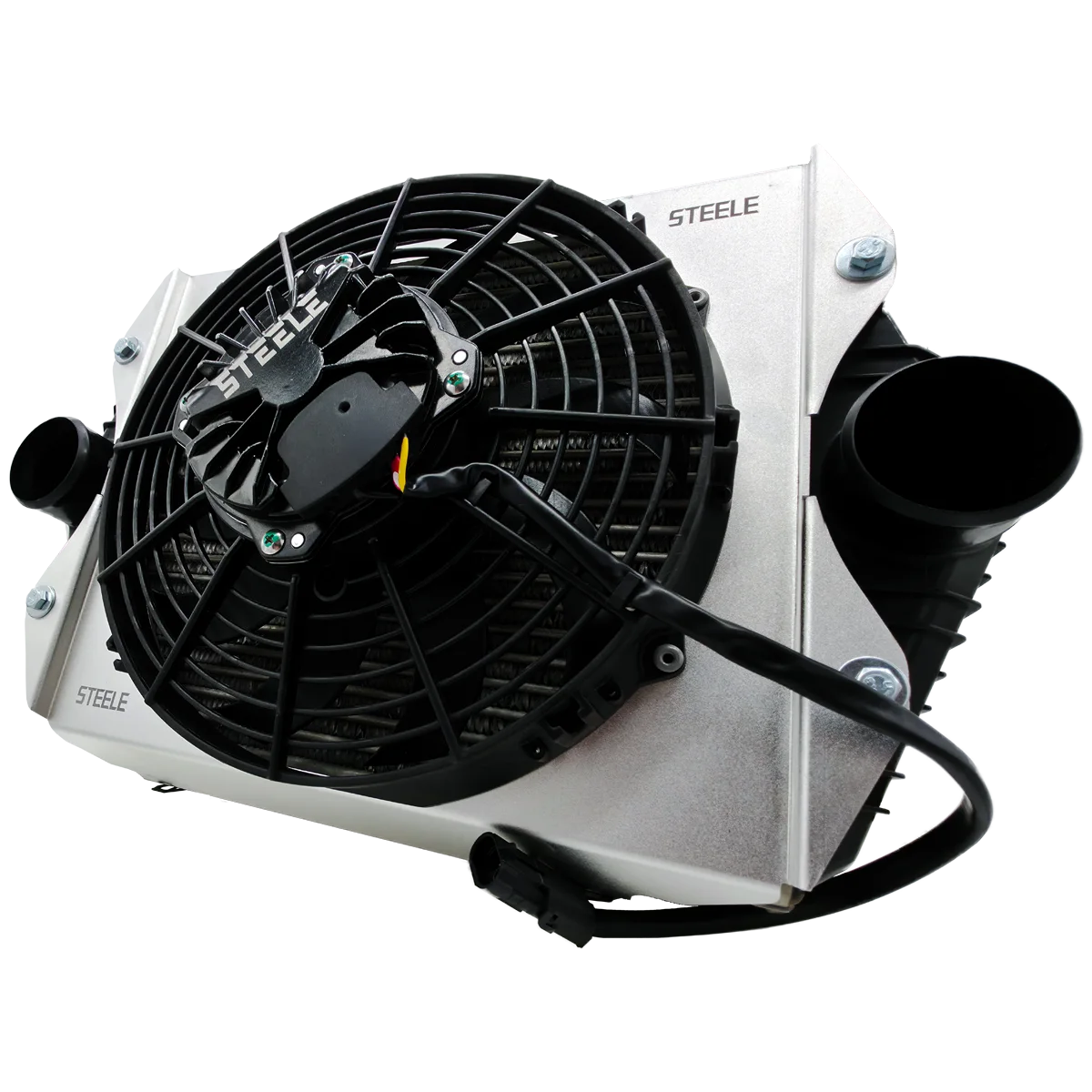

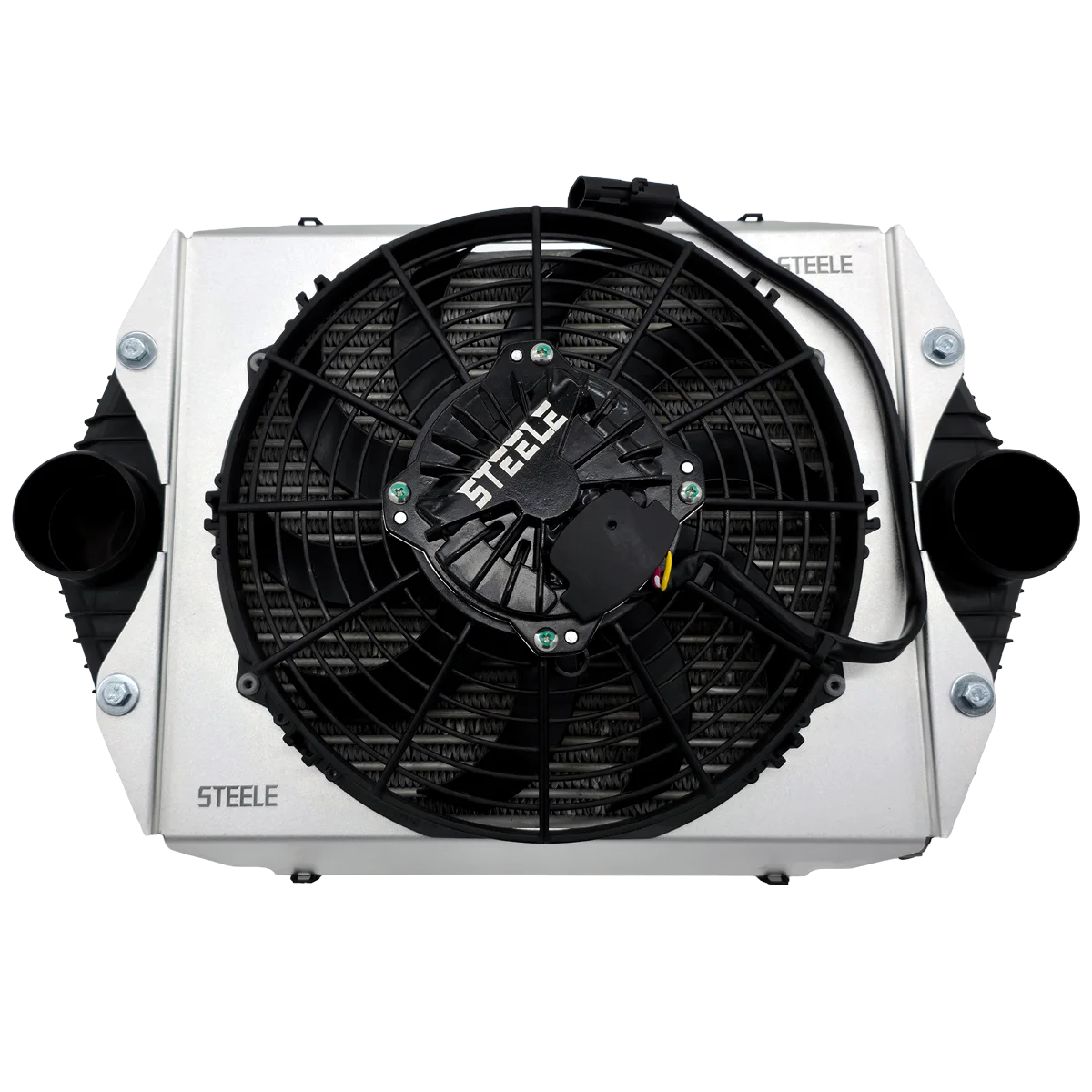

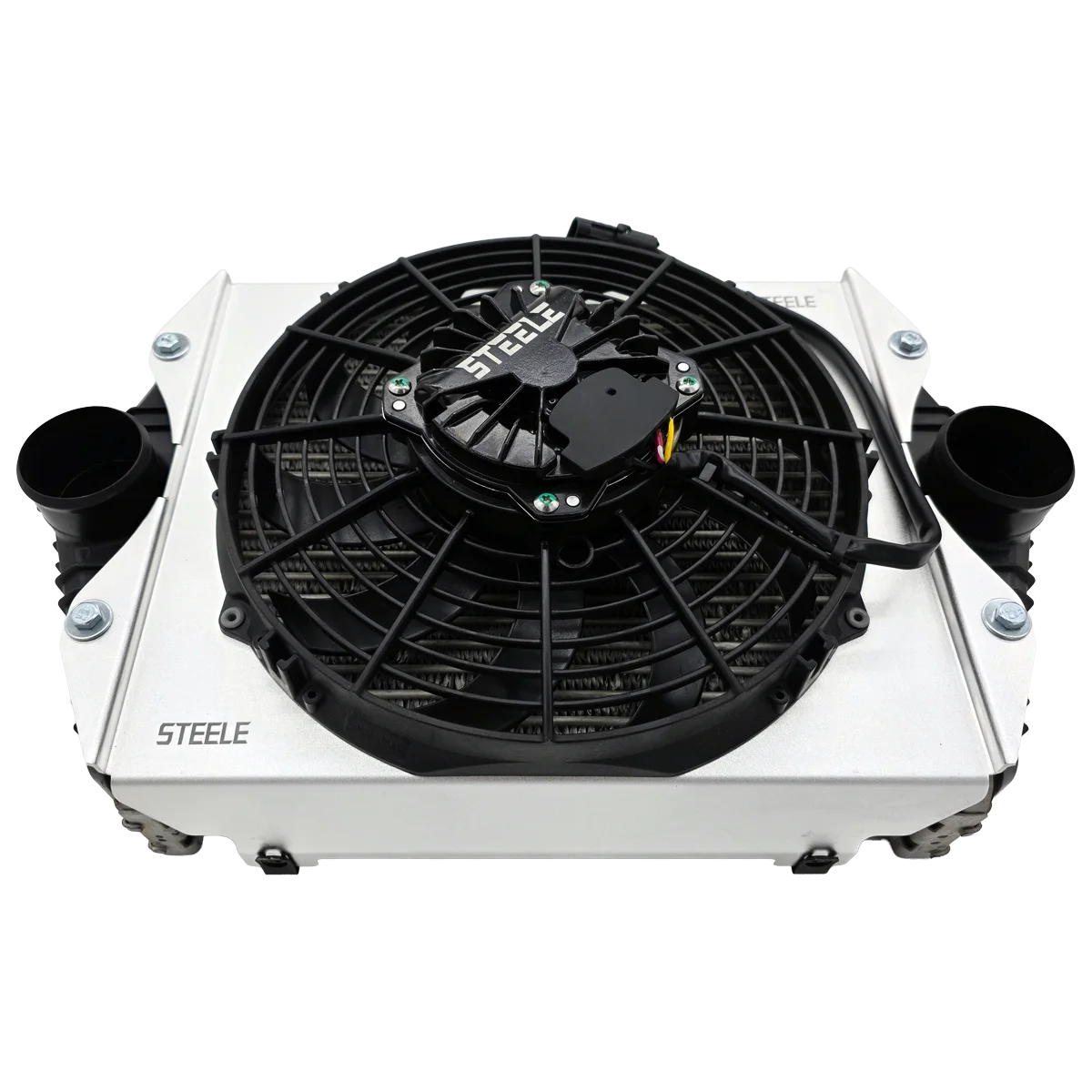

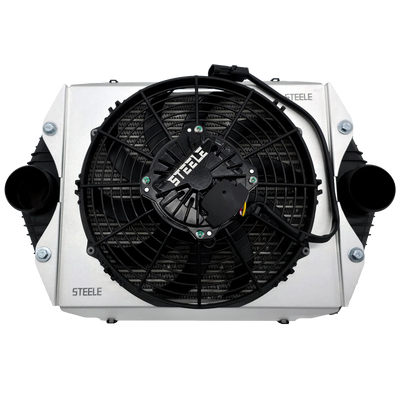

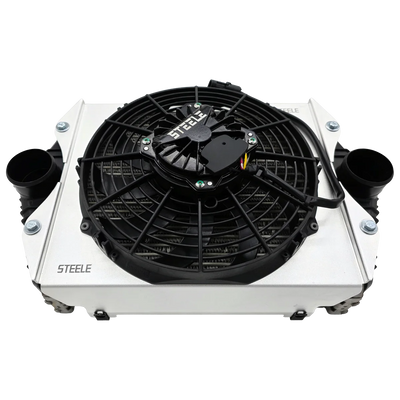

SRP | Can-Am X3 2020+ | Brushless Intercooler Fan and Shroud

SRP | Can-Am X3 2020+ | Brushless Intercooler Fan and Shroud

Name: SRP | Can-Am X3 2020+ | Brushless Intercooler Fan and Shroud
Brand: Steele Racing Products
SKU: 20-3111
Price: 389.95 USD
Availability: InStock

Sku: 20-3111

In stock

$ 389.95

- {price}%

Best seller

Soft-Start_268826d0-8773-4851-a90f-28f0b8692a0d

IP68_88ea573c-4ae1-423a-91ea-fcc2f57faab9

Plug_N_Play_e5583b33-33cd-4e9b-aaca-1cb06882c2e1

Order in the next [hour] to get it between [date_start] and [date_end]

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Returns & Exchanges Policy

Refund & Return Policy

Return Policy

We gladly accept returns on most items within 21 days of purchase. Returns may be subject to restocking fees to cover credit card fees, shipping, and re-packaging costs.

Return Instructions

Contact Us

Call 520-314-9248 and speak with an SRP employee within 21 days of receiving your shipment (as determined by the carrier’s tracking number). If eligible, you will be issued a Return Merchandise Authorization (RMA) number.

Shipping Your Return

Ship the item(s) to the address provided by our representative, at your own expense. You must insure the shipment for the full retail value of the returned parts. If parts are damaged during return transit, it is your responsibility to seek reimbursement from the shipping company.

Return Timeframe

After receiving your RMA number, you have 21 days to ship the item(s) back. If SRP does not receive the parts within that timeframe, the RMA becomes void and the item(s) will be returned to you.

Condition of Returned Items

All returned parts must be unused, uninstalled, and undamaged. SRP will assess each return upon arrival. If accepted as new, a refund will be issued.

Shipping Costs

Shipping charges are non-refundable.

Dealer Purchases

Parts purchased through authorized dealers must be returned to the original dealer, following the same conditions as above.

Non-Returnable Items

The following items cannot be returned or refunded:

Any item purchased more than 21 days ago
Special order or modified items
Labor, service, or activation fees
Items not in their original, new, unused condition
Items missing parts or damaged (except during shipping)

If your item was damaged during shipping, retain all packaging and email a photo to info@steeleracingproducts.com. This is required for a UPS investigation and refund or reshipment.

Return Shipping Guidelines

Do not bring returns to races or events without prior approval. Support trailers, including in Baja, cannot accept returns or exchanges.

To return your item:

Include a copy of your original receipt
Use original packaging or a sturdy corrugated box
Securely pack and tape your shipment
Ship with a traceable method (FedEx, UPS, or insured Parcel Post)

Note: SRP is not responsible for returns not received or not signed for.

Damaged or Missing Parts

If your order arrives with damage or missing parts, notify SRP within 72 hours of delivery (per tracking number).

Steps:

Take photos of:

Damaged part(s)
Packing material
Shipping box(es)
Tracking label

Call 520-314-9248 and speak to a team member.

Email the photos as directed. If determined to be shipping damage:

SRP will issue an RMA number and return label

Upon receiving the damaged item, we’ll send replacements

Or, we can charge and ship immediately, then refund once the original part is returned

Liability Disclaimer

SRP is not liable for damage to your vehicle or injury resulting from installation or use of our products.

Return Address

Steele Racing Products

2440 N Coyote Dr. Suite 130

Tucson, AZ 85745

Phone: 520-314-9248

Engineered for the demands of modern off-road racing, the SRP Pro Brushless Fan + Shroud delivers maximum cooling performance for Can-Am Maverick X3 (2020–2025) models with a stock intercooler. Featuring our fully sealed IP68 brushless motor, advanced soft-start control, and a high-efficiency curved blade design, this assembly delivers 1154 CFM airflow with minimal amp draw. Built for real-world endurance with race-proven electronics and high ferrite magnets, the SRP Pro Series ensures consistent cooling, reduced electrical strain, and long-term reliability in harsh environments—trusted in S.C.O.R.E. Baja and BITD series competition.

HEADING 1	HEADING 2
Airflow:	1154 CFM
Current Draw:	7.5 A
Control Method:	Universal \| Direct Power
Operating Voltage:	12–16 VDC
Duty Cycle:	50,000+ Hours
IP Rating:	IP68
Wiring Connection:	2-pin weatherpack connector
Operating Temperature:	-40°F–230°F
Compatibility:	2020+ Can-Am Maverick X3

HEADING 1	HEADING 2
Airflow Increase:	+16% vs OEM
Heat Soak Reduction	-28% vs OEM
Power Efficiency:	+26% vs OEM
Startup Current:	1A

Airflow Performance

STEELE_Can_Am_X3_Intercooler_Assembly_Comparison_ChartAirflow_CFM_bcf260a3-9131-4f51-ac7f-c89e50d149ed — SRP’s 2020+ Brushless Fan pushes 16% more max airflow than OEM, moving up to 1154 CFM to keep your X3 cooler under pressure.

Engineered to Dominate.
Designed to Win.

Cooler intake temps mean denser air, stronger combustion, and more power when it counts. This is race-proven performance, built to keep your engine in the zone—run after run.

+16% More Airflow

Race-Proven Airflow Advantage

Superior Airflow Curve

Engineered for Endurance

Heat Soak Reduction

STEELE_Can_Am_X3_Intercooler_Assembly_Comparison_Chart_Charge_Temp_369cf5d0-f79d-475c-a81c-31a12dbbb6e7 — Tested with BDI Geiser's Can-Am X3, SRP fans reduced charge temp gain from 65°F to 47°F—delivering a 28% drop in heat soak over OEM.

Race-Tested Cooling.
Repeatable Results.

SRP’s fan and shroud assembly outperforms OEM with a 47°F charge air temp gain vs. 65°F stock—delivering a 28% reduction in heat soak. That’s real-world performance tested in high-load, high-temp runs—because cooler air equals more power, lap after lap.

Proven Heat Soak Reduction

-28% Lower Charge Air Temps vs. OEM

Real-World Temperature Drop

SRP’s 47°F charge air temp means less power loss from heat soak

Current Draw & Electrical Load

STEELE_Can_Am_X3_Intercooler_Assembly_Comparison_Chart_Amp_Draw_b7be970c-6848-4025-93ec-35cbf2d768dd — Testing shows the SRP Pro fan cuts startup draw by 98%, preventing the 41A spike seen with OEM—helping your X3 run cooler and smarter under pressure.

Less Amp Draw.
Smarter Performance.

SRP integrated soft-start technology eliminates the 41 amp surge seen in OEM brushed fans—delivering smooth startup at just 1A.

This prevents voltage spikes, relay stress, and wiring overloads during power-on. No additional harness or wiring upgrades are needed—just bolt on and go.

Integrated Soft Start

-98% Startup Current Spike

System-Safe Power Curve

Efficient Average Amp Draw

Power Efficiency

STEELE_Can_Am_X3_Intercooler_Assembly_Comparison_Chart_Efficiency_CFMperAmp_d228df32-8b0b-4a41-8e49-cc069c5919d5 — SRP Brushless fans delivered a 26% improvement in airflow efficiency compared to OEM during a 35-second test—helping your X3 stay cooler with less electrical demand.

Engineered for Efficiency.
Built to Perform.

The SRP Brushless Fan delivers more airflow per amp—reducing electrical load while increasing cooling output. It’s a smarter, more efficient solution for high-demand racing and off-road environments.

Efficiency Under Load

+26% Greater CFM per Amp

Tested Results That Matter

154 CFM per Amp Efficiency

Designed to Perform.
When Winning’s the Only Option.

Tested with BDI Geiser to validate performance in real-world race conditions
Designed to thrive under high heat, vibration, and relentless off-road abuse
Engineered by STEELE to deliver maximum airflow and long-term durability

Precision Cooling.
Championship Builds.

Trusted by top teams chasing podium finishes
Race-proven to deliver consistent performance under pressure
STEELE cooling systems are built to win—not just survive

Got Questions? We've Got the Answers.

From install tips to technical specs, here’s everything you need to know about our SR Brushless Radiator Fan Motor Upgrade for the Can-Am X3.

What are the advantages of the SRP Intercooler Fan Assembly compared to OEM?

SRP Brushless Intercooler Fans deliver significantly higher airflow with lower amp draw, outperforming the stock unit in both cooling efficiency and electrical reliability. Built with high-temp sealed electronics and a SRP brushless motor, it’s engineered to handle heat soak and demanding conditions that push OEM fans to failure.

Is the SRP Brushless upgrade suitable for recreational riding and trail use, or built only for racing?

It’s built to race, but made for everyone. The SRP Brushless upgrade is ideal for trail riders, sand dune enthusiasts, and anyone running hard in high-heat environments. Whether you’re cruising or pushing boost on tuned setups, it keeps charge temps low and performance high.

Does the SRP Brushless fan require an additional controller or harness, or is it plug-and-play?

The SRP Brushless fan is fully plug-and-play—no additional controller or harness required. All power and control logic is integrated within the sealed motor housing. Simply connect it to your existing wiring, and it’s ready to run. No tuning, no locked modules, no complications.

What Can-Am models are compatible with the STEELE Brushless Intercooler Fan Assemblies?

This fan is available in fitments for 2017–2019 and 2020+ Can-Am Maverick X3 models. Each version is optimized for the proper shroud geometry and connector style—just choose your year range when ordering to ensure direct compatibility.

How does SRP Soft Start Technology benefit your electrical system?

SRP Soft Start Technology is programmed into every fan to prevent harsh current spikes on startup. This protects your electrical system by easing in the fan’s power draw—reducing stress on fuses, relays, and sensitive electronics, especially on builds with added accessories.

Can you install the SRP Brushless Intercooler Fan yourself?

Yes — the SRP Brushless upgrade is built for easy installation. It mounts directly in place of the stock fan with no cutting, splicing, or special tools required. Most installs can be done in under an hour by DIYers or shop techs.

What does the IP68 rating mean for real-world performance?

IP68 means the SRP Brushless motor is sealed against fine dust, mud, and water—even under full submersion. It’s designed to survive the harshest off-road conditions without failing or losing efficiency, whether you're racing in the desert or hitting muddy trails.
