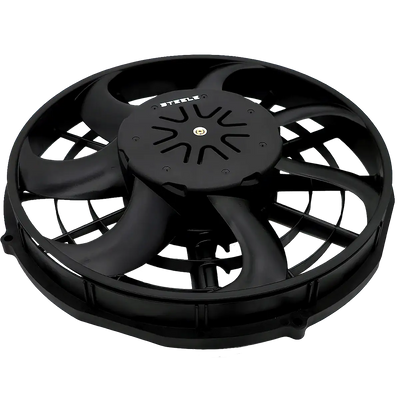

STEELE High-Powered 12-inch Pro Series Brushless Fan – PWM-Controlled Flush Mount Electric Fan

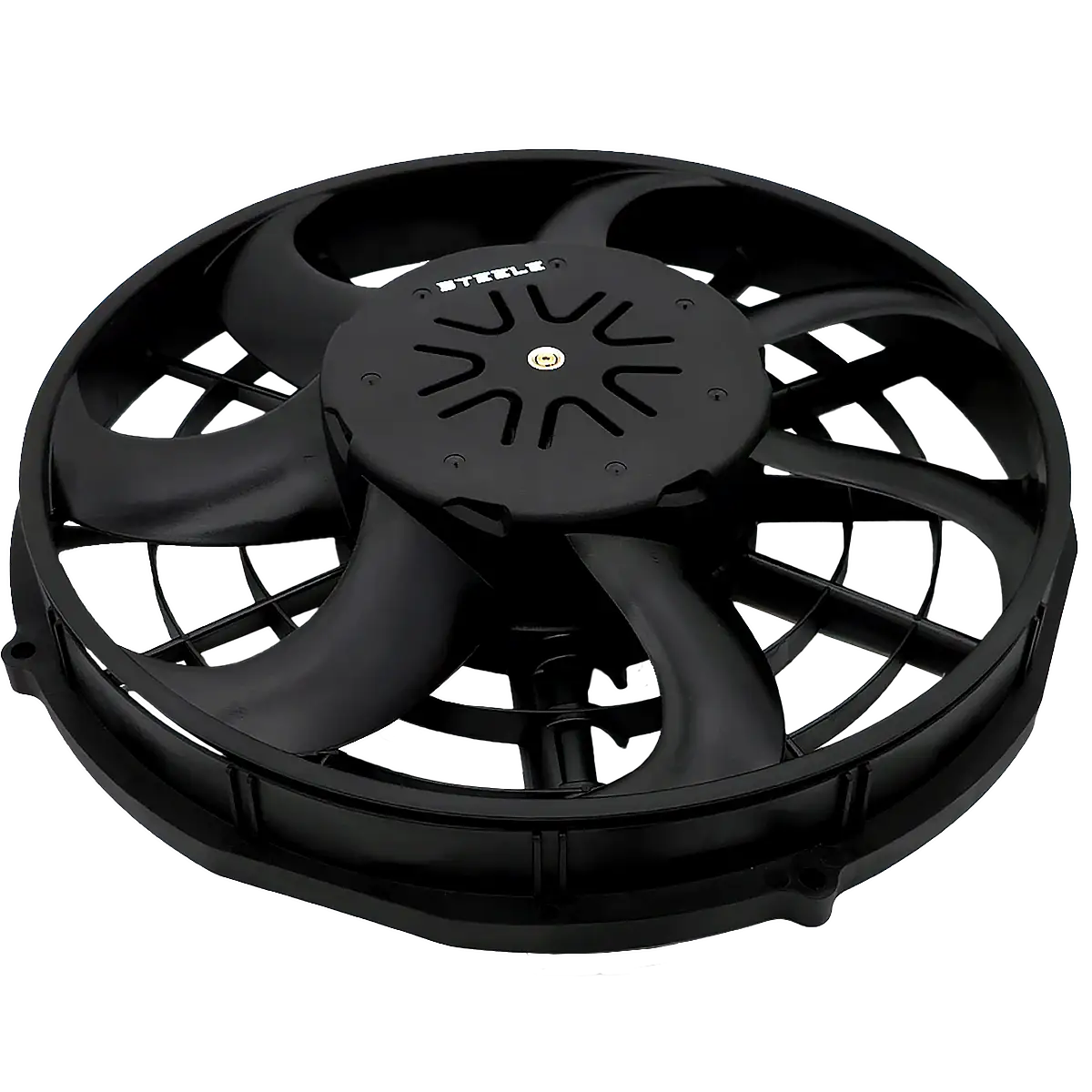

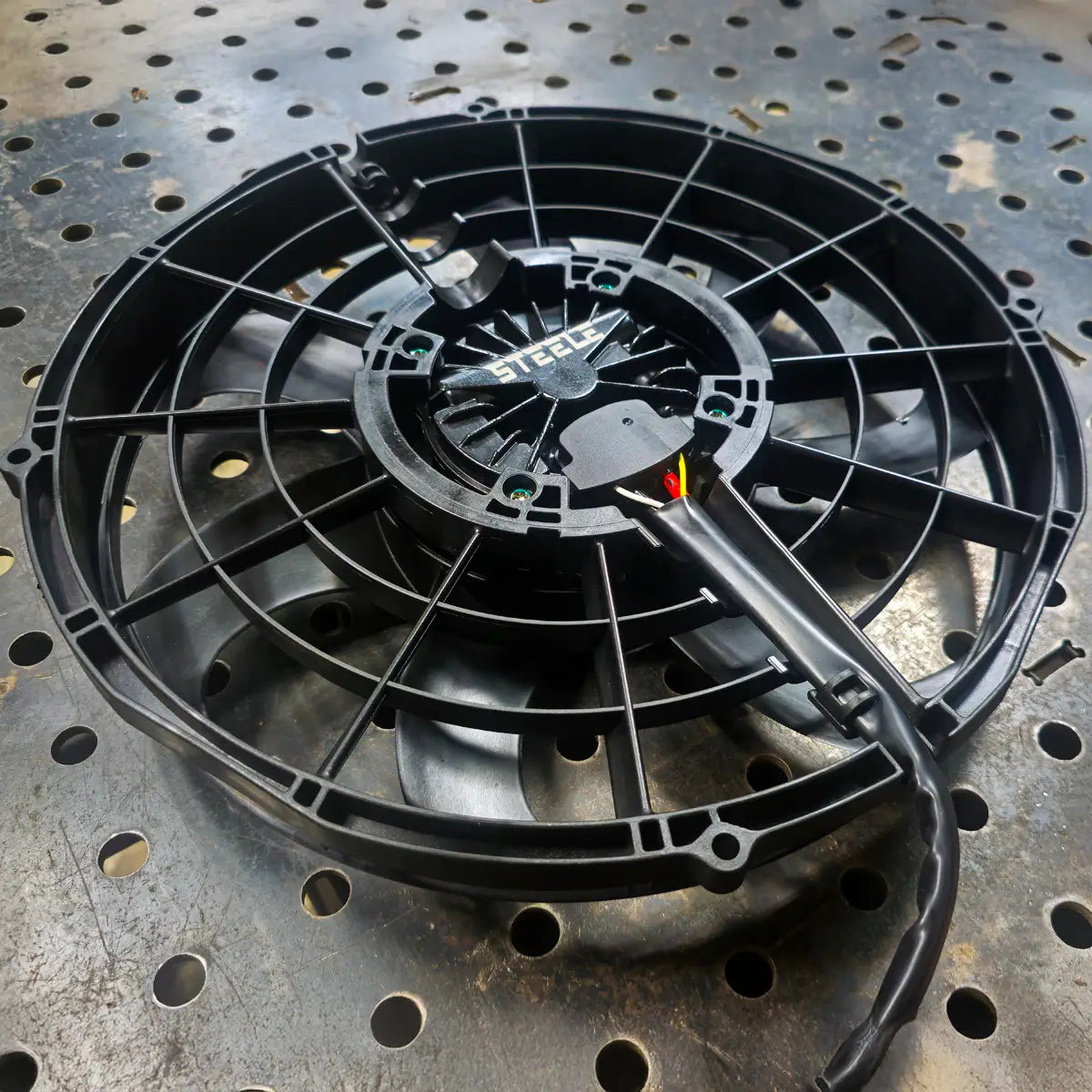

SRP Pro Series 14" Brushless Fan

Name: SRP Pro Series 14" Brushless Fan
Brand: Steele Racing Products
SKU: 20-3072
Price: 475.95 USD
Availability: InStock

Sku: 20-3072

In stock

$ 475.95

- {price}%

Best seller

The SRP Pro Series 14" Fan delivers 3028 CFM at 33A. Built for maximum performance, this PWM-only fan series features our advanced soft-start software to protect your electrical system under load and requires no additional wiring harness to operate. The electronics are fully potted and sealed within the motor housing, ensuring maximum reliability and longevity in the harshest conditions.

*required

Soft-Start_268826d0-8773-4851-a90f-28f0b8692a0d

IP68_88ea573c-4ae1-423a-91ea-fcc2f57faab9

Plug_N_Play_e5583b33-33cd-4e9b-aaca-1cb06882c2e1

Order in the next [hour] to get it between [date_start] and [date_end]

Guaranteed Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Returns & Exchanges Policy

Refund & Return Policy

Return Policy

We gladly accept returns on most items within 21 days of purchase. Returns may be subject to restocking fees to cover credit card fees, shipping, and re-packaging costs.

Return Instructions

Contact Us

Call 520-314-9248 and speak with an SRP employee within 21 days of receiving your shipment (as determined by the carrier’s tracking number). If eligible, you will be issued a Return Merchandise Authorization (RMA) number.

Shipping Your Return

Ship the item(s) to the address provided by our representative, at your own expense. You must insure the shipment for the full retail value of the returned parts. If parts are damaged during return transit, it is your responsibility to seek reimbursement from the shipping company.

Return Timeframe

After receiving your RMA number, you have 21 days to ship the item(s) back. If SRP does not receive the parts within that timeframe, the RMA becomes void and the item(s) will be returned to you.

Condition of Returned Items

All returned parts must be unused, uninstalled, and undamaged. SRP will assess each return upon arrival. If accepted as new, a refund will be issued.

Shipping Costs

Shipping charges are non-refundable.

Dealer Purchases

Parts purchased through authorized dealers must be returned to the original dealer, following the same conditions as above.

Non-Returnable Items

The following items cannot be returned or refunded:

Any item purchased more than 21 days ago
Special order or modified items
Labor, service, or activation fees
Items not in their original, new, unused condition
Items missing parts or damaged (except during shipping)

If your item was damaged during shipping, retain all packaging and email a photo to info@steeleracingproducts.com. This is required for a UPS investigation and refund or reshipment.

Return Shipping Guidelines

Do not bring returns to races or events without prior approval. Support trailers, including in Baja, cannot accept returns or exchanges.

To return your item:

Include a copy of your original receipt
Use original packaging or a sturdy corrugated box
Securely pack and tape your shipment
Ship with a traceable method (FedEx, UPS, or insured Parcel Post)

Note: SRP is not responsible for returns not received or not signed for.

Damaged or Missing Parts

If your order arrives with damage or missing parts, notify SRP within 72 hours of delivery (per tracking number).

Steps:

Take photos of:

Damaged part(s)
Packing material
Shipping box(es)
Tracking label

Call 520-314-9248 and speak to a team member.

Email the photos as directed. If determined to be shipping damage:

SRP will issue an RMA number and return label

Upon receiving the damaged item, we’ll send replacements

Or, we can charge and ship immediately, then refund once the original part is returned

Liability Disclaimer

SRP is not liable for damage to your vehicle or injury resulting from installation or use of our products.

Return Address

Steele Racing Products

2440 N Coyote Dr. Suite 130

Tucson, AZ 85745

Phone: 520-314-9248

HEADING 1	HEADING 2
Airflow:	3028 CFM
Current Draw:	33 A
Control Method:	PWM Controlled
RPM Range:	835–3380
Operating Voltage:	12–16 VDC
Wiring Connection:	3 - Wire
Duty Cycle:	50,000+ Hours
Blade Style:	Curved
Motor Type:	Brushless
Fan Type:	Puller
Mounting Type:	Drop-In

HEADING 1	HEADING 2
Blade Diameter:	14 in.
Housing Diameter:	15.04 in.
Housing Depth:	3.1 in.

10_Inch_Pro_800x800_a5aac02f-85a2-4260-991b-a20acaae0c31

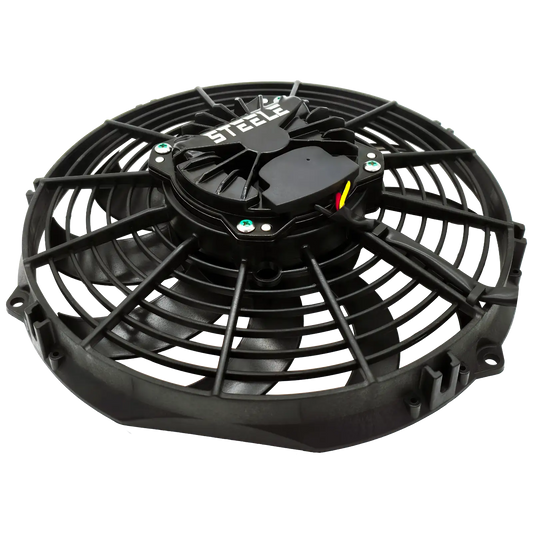

SRP Pro Series 10" Puller Fan

Buy It Now

Pro_12_800x800_6676f301-5139-4110-85a5-ad8f0dbf995f

SRP Pro Series 12" Puller Fan

Buy It Now

14HP_Top_Angle_800x800_8b5bdb4f-7c0c-48b3-b2eb-2f9ccd8db27b

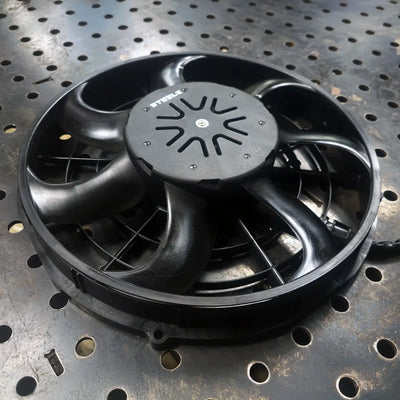

SRP Pro Series 14" Puller Fan

Buy It Now

Airflow (CFM)

1380

1914

3028

Current Draw (Amps)

18.2

21.9

Mounting Configuration

Flush

Drop-In

Advanced Soft Start

Controller Type

3-Wire PWM

External Wiring Harness

Not Required

*no additional wiring harnesses needed, like those required by SPAL or other aftermarket fans. Just connect power, ground, and PWM signal.

FAQ | SRP Pro Series Fans

Everything You Need to Know About SRP Pro Series Fans

What’s the difference between the SRP Pro Series and Performance Series fans?

SRP Pro Series fans provide higher airflow (CFM) and much stronger static pressure, making them ideal for demanding applications like dense radiators, intercoolers, and shrouded systems. The Performance Series is better suited for general-purpose cooling, classic builds, and custom setups that don’t require high pressure.

How are the SRP Pro Series fans controlled?

Pro Series fans are PWM-only. They are designed to integrate with modern ECUs and fan controllers. If you need a fan that can run on direct power or PWM, the Performance Series is a better fit.

Can I run Pro Series fans without a PWM controller?

No. Pro Series fans require PWM control to operate and are not compatible with direct power/ground. For universal power options, check out our Performance Series fans.

How are SRP Pro Series fans mounted?

The 10" Pro Series fan uses a flush mount design—best for custom installs, brackets, or flat-panel mounting where flexibility is needed.

The 12" and 14" Pro Series fans are designed with drop-in mounts. These are designed to fit into existing shrouds or radiator assemblies, especially in racing, off-road, and high-performance builds.

Can I install an SRP Pro Series fan myself?

Yes, our fans are designed for easy installation and can be installed by anyone with basic mechanical skills. However, for guaranteed optimal performance and reliability, we recommend professional installation.

Are SRP Pro Series fans compatible with MoTeC, Holley, or other ECUs?

Yes. All SRP Pro Series fans accept a standard 50–500Hz PWM signal, making them compatible with most aftermarket ECUs, including MoTeC, Holley, Haltech, AEM, and other programmable systems.
