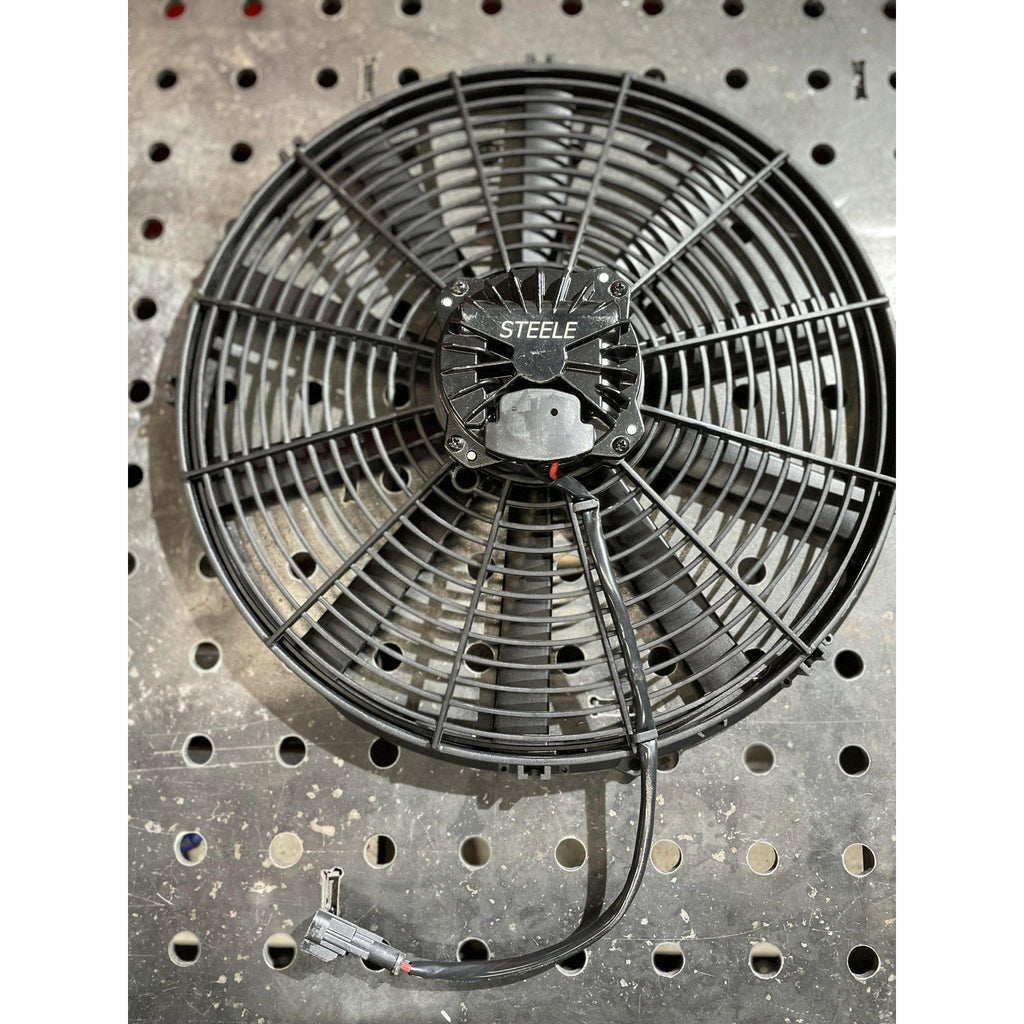

SRP R20016FP - 2015 CFM 16" [PUSHER] - High-Performance Brushless Fan [PUSHER] is an on & off-road-ready system, capable of handling all weathering conditions and protection against sand, mud, water, fog, and chemicals.
Designed for performance and longevity in mind, the power and control electronics are integrated within the sealed motor to ensure a longer useful life and reliability.
SOFT START TECHNOLOGY
Programmed into every fan is our soft-start technology. Avoid costly electrical problems by mitigating voltage and amperage spikes across the system due to poor power management systems found in other fans.
PWM SENSOR CONTROL or "INSTANT ON"
SENSORLESS CONTROL (PWM)
The built-in PWM signal will provide proportional control of fan speed through your PDM.
PWM range between 50-200HZ (15% start to 100% full-speed)
Failsafe built-in PWM input loss of communication that will run the fan at full speed.
The SRP R20016FS is completely standalone and designed for turn-key operation on any vehicle. Upgrade any OEM electric fan and see for yourself the power of Steele's brushless system.
- Overall OD: 16.2"
- Fan ID: 15.1"
- Depth: 3.2"
- Max CFM: 2015
- Amp Draw: 15.5A @ 13.1V
- Cutting edge fan & motor blade technology
- Low Noise and vibration
- Lightweight motor design
- High ambient working temperature
- Operates in challenging environments
- IP Rating: IP68
- Duty-cycle: 50,000 hours
Designed with a straight blade and slotted to maximize performance and efficiency, the motor is purpose-built with high ferrite magnets and state-of-the-art sensor-less drives for automotive environments. It is the most versatile high-performance brushless radiator and intercooler fan on the market.
- 10 - 16 VDC / Variable Speed
- LIGHTWEIGHT: 3lbs 15oz lbs in overall weight
- Operating Temperature RAnge -40 - 285F (-40 - 140C)
- PUSHER Style Fan
Optional Add-On Parts:
- PWM VSpeed - Variable Speed Controller for SRP radiator/intercooler fans
- Link: https://tinyurl.com/SRPVSpeed
