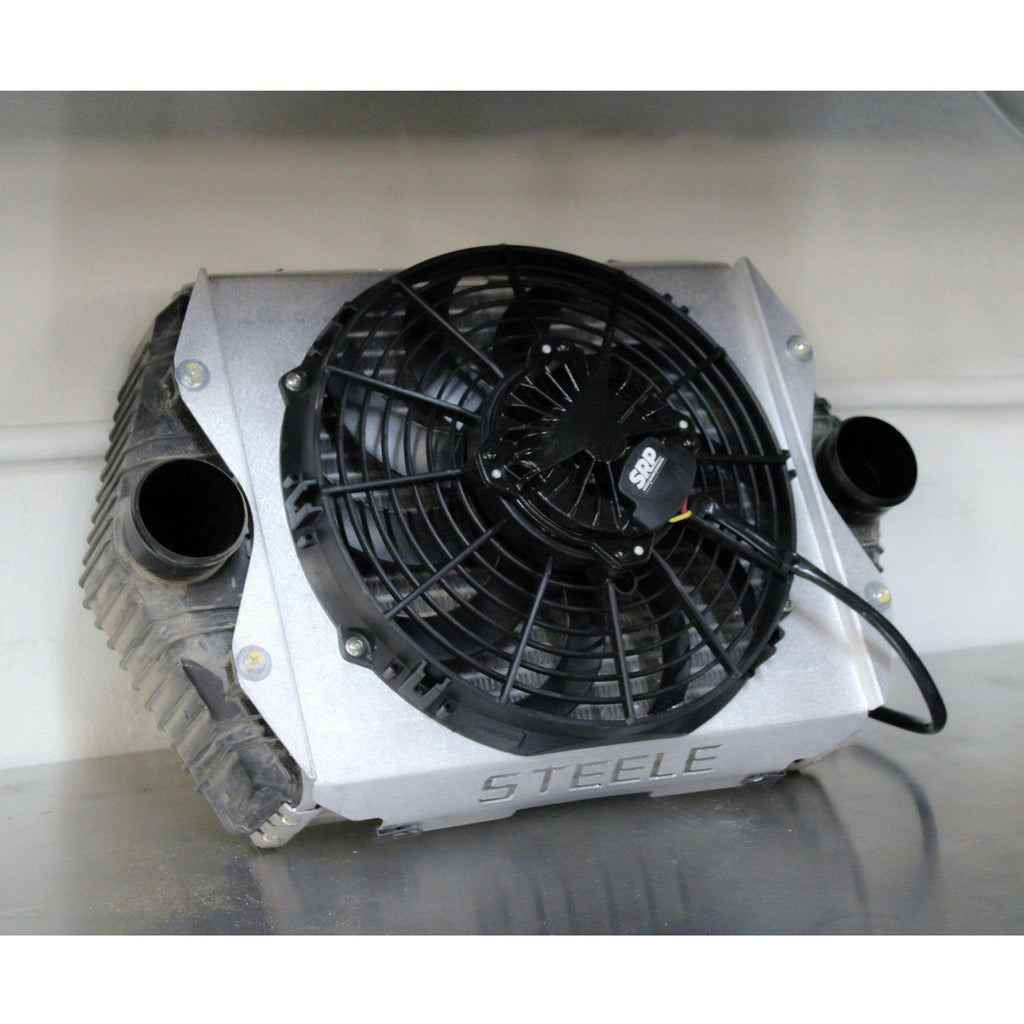

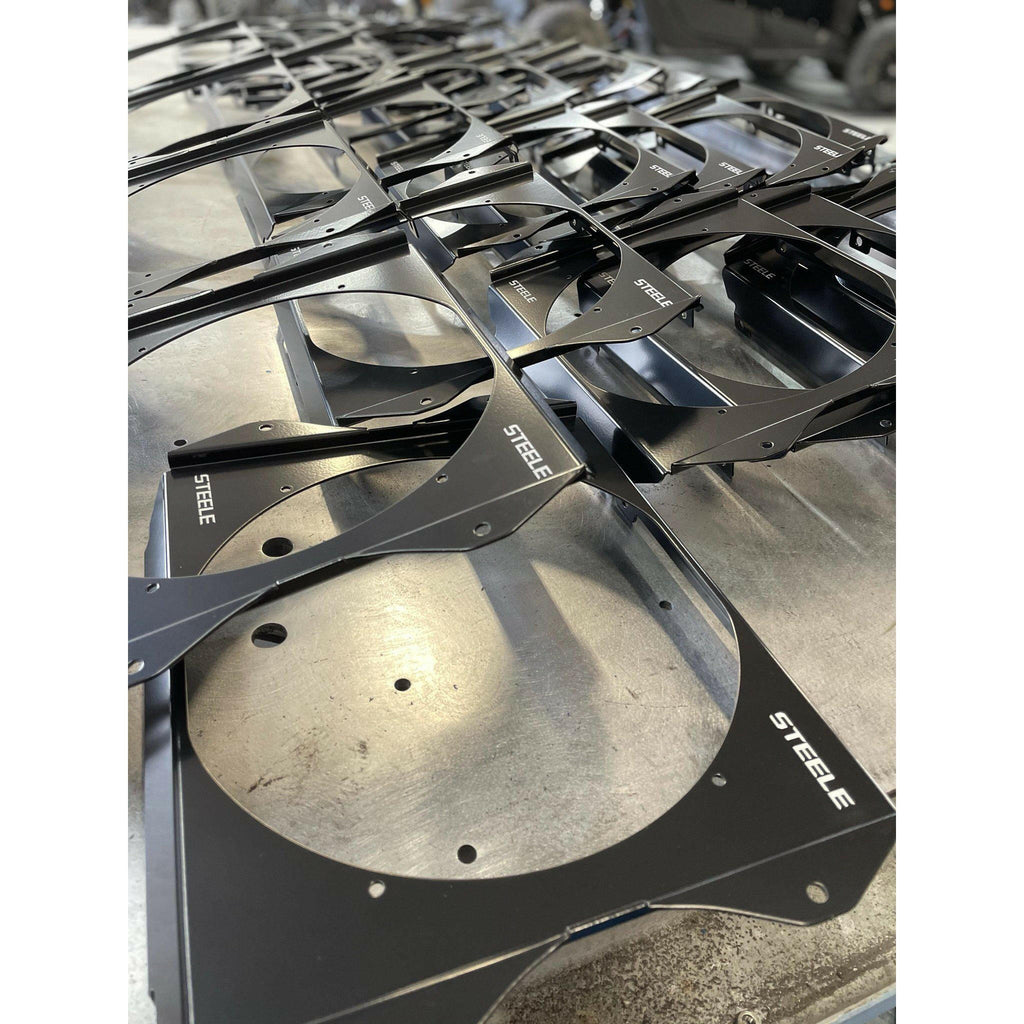

**Can-Am X3 Intercooler Fan + Shroud Replacement for the 2020+ model.**
Utilizing our race-proven R20010FS brushless fan, we designed a direct replacement intercooler fan & shroud combo to maximize the power and efficiency of your X3.
SRP R20010FS - 1135 CFM 10in - High-Performance Radiator Fan [PULLER] is an on and off-road-ready system, capable of handling all weathering conditions and protection against sand, mud, water, fog, and chemicals.
Our fans are race-proven with countless miles of desert racing in the S.C.O.R.E. Baja and BITD series.
Learn more about the fan driving this below:
Designed for performance and longevity in mind, the power and control electronics are integrated within the sealed motor to ensure longer useful life and reliability.
Low-Speed & High-Speed settings are programmed to trigger off a temperature plug installed in the radiator or oil cooler.
Low-Speed mode operates between 70C-89C
High-Speed mode operates after 90C
Just want it to turn on when you plug it in? Just disconnect the temperature sensor plug from the harness and the fan will ramp-up to full speed when powered.
The built-in PWM signal will provide proportional control of fan speed through your PDM.
PWM range between 50-200HZ (15% start to 100% full-speed)
Failsafe built-in PWM input loss of communication that will run the fan at full speed.
The R20010FS is completely standalone and designed for turn-key operation on any vehicle. Upgrade any OEM radiator, intercooler, and oil cooler fan, and see for yourself the power of Steele's electric brushless system.
- Height: 11.53"
- Width: 9.72"
- Depth: 3.13"
Max (high) CFM: 1135
- Amp Draw: 8.5A @ 13.2V
- Cutting edge fan & motor blade technology
- Low Noise and vibration
- Lightweight motor design
- High ambient working temperature
- Operates in challenging environments
- IP Rating: IP68
- Duty-cycle: 50,000 hours
Designed with a curved blade and slotted to maximize performance and efficiency, the motor is purpose-built with high ferrite magnets and state-of-the-art sensor-less drives for automotive environments. It is the most versatile high-performance brushless radiator fan on the market.
- 10 - 16 VDC / Variable Speed
- LIGHTWEIGHT: 2.3 lbs in overall weight
- Operating Temperature Range: -40 - 285F (-40 - 140C)
- PULLER Style Fan
